Paul K space : Contino - Azure Management IaC

Created by Paul Kelleher, last modified on May 23, 2023

Item

Link

Wordage

main Azure Practice repo for Vending

azure_practice_management_iac_poc

The main subscription under which config files are placed and picked up by automation to process and vend

contino-engineering

https://github.com/contino-squad0

an org to build the POC to house vended repositories

Contino provide services under it’s general and enterprise agreements for access to services such as Microsoft Office 365, Azure and various other management services used for managing resources (such as license allocation) and provisioning services for a variety of requirements

It is the aim of this document to work through a scenario where

  • resources can be defined by non-technical users with sufficient access

  • resources and their delivery is automated so far as possible

  • resource utilisation (or lack thereof) can be picked up to ensure effective cost and license management

  • joiners and leavers processes can be integrated

The Microsoft CAF provides a best practice suite of modules which for a project delivery into an organisation delivery software products are very well catered for - however Contino as a collective of very technical minds, will often require a thin delivery model

Within this proof management, policy and restrictions will be delivered in line with the scope of the resources delivered, however the aim is maximum flexibility married with cost effectiveness and a frequent feedback loop for the life of deployed resources

TL/DR

Make Azure Infrastructure Management and Lifecycle super simple with IaC usable by non-technical contini’s

Deploy Backend
  • Deploy backend services
    • Create Management Subscription
    • Assign Owners
    • Create tfstate Resource Group
    • Create Storage Account
    • Create Containers
    • Create Key Vault
    • Create Custom Role
    • Create Service Principal
    • Create SP Client_Secret KV Secret
    •
Configure & Secure Management Subscription

Create Management Groups Hierarchy
  • read config
  • Create Management Group
    • if Level 1 assign parent as Root
    • if other level assign parent as listed value in config
Policy Assignment
  • read config
    • iterate Management Groups
    • assign policy
    • assign exemptions
Blueprint Definition
  • read config
    • create definition
    • save under admin management group
    • Policy Artifacts
    • Role Assignments
    • Resource Group Deployment
      • ARM Template Deployment
Subscription Vending
  • read config
    • create subscription
      • naming convention
      • user:
      • project:
      • backoffice:
    • assign to management group
      • policy assignments apply
      •
    • assign roles

Components & Process

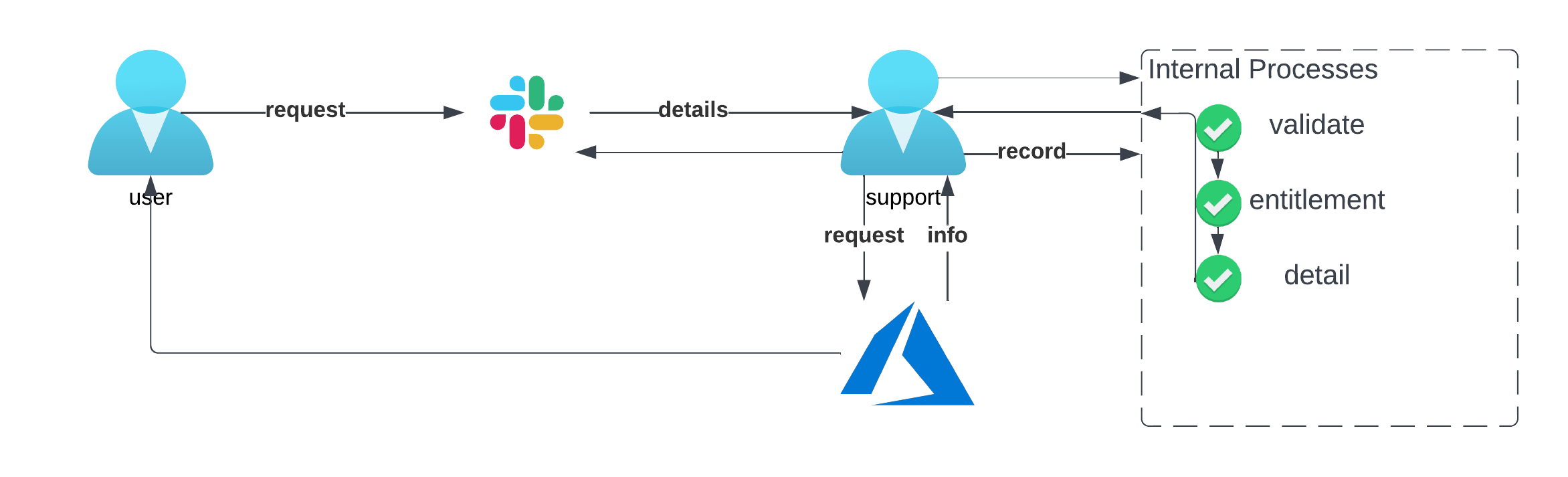

The current workflow is shown below

Initialisation

While a management “network” and resources as described below is desirable for all stages to replicate the final intended state, the initial POC does not require it - similarly the MVP would simply require a backend state storage facility

A Management system using IaC will require a highly controlled and audited management subscription to contain management resources and provide a secure location to store sensitive data and apply changes to any internal infrastructure

  • Create a management subscription under the primary tenant
  • Apply Azure Best Practice Securing for a management subscription
    • Maximum 3 Owners
    • PIM Access preferred
    • Restricted Portal Access to known IPs
    • Bastion Access Service
  • Create remote state backend resources using terraform
    • import local tfstate into newly created remote backend
  • Create secure internal Github Actions runner to allow secure code execution

  • terraform backend module

  • terraform subscription module

  • terraform bastion module

  • Subscription

  • IAM Roles & PIM

  • Conditional Access

  • Github Runner Infrastructure

  • Bastion Infrastructure

  • GitHub Action runner attached to only the management repository and only using custom runners

Click for more detail and links

[ Initialisation ]

Delivery Component

Detail

IaC Management Subscription

GitHub repository, manual workflow for initialisation components, Terraform

Resource Tagging - (incomplete - on hold)

Phased introduction of IaC delivered components adding in set tags which as they build and become populated will be central to automated management

Management Groups & Policy (incomplete - on hold)

Policy and automation applied will be dictated by the management groups - with basic delivery ensuring a zero access subscription and as we grow automation, actions will be tailored depending on certain criteria

EA Subscription Vending

Azure EA Subscription Vending

GitHub repository, manual workflow and automated workflow to identify new configurations from json config files (one per sub) and iterate through vending

  • ready fore chaos monkey!

CIS Secure Base

Azure Image Factory - Hardened Images

GitHub repository to pick up configurations of OS and CIS role to automate delivery of Azure base images with CIS enabled - auto-rebuild base images when Azure update the OS

** ready for integration as a landing zone and testing **

Custom Dev

Azure Image Factory - Customisable Images

GitHub repository to pick up configurations that specify a base OS defined previous step and allow end user managed custom installs and image creation with auto-rebuild on base OS updates!

** ready for integration as a landing zone and testing **

Need to look at integrating:

`

https://github.com/contino/azure-contino-tenant

CAF
