Previously we detailed the process of creating our service principal and using that to deliver an azure subscription - so here we will map the process from az cli to terraform

map all of the required variables into one variables.tf
create the data lookups and service principal resource
assign roles and permissions to the SP
create an Azure Subscription using defined parameters
bundle the process steps into a terraform module

Unable to render {children}. Page not found: Azure Automation: automation by first principles.

Here we will identify all the inputs and requirements for each stage of facilitating and creating a subscription via cli - this will remind us of the stages and steps needed for full automation

:sp: :terraform:

Insert the required terraform azurerm features block

Provider "azurerm" {
  features {}
}

Set variables for the Service Principal name so that we can re-use the code

variable "application_name" {}
variable "management_group" {}

lookup the root management group so that we can assign scope

data "azurerm_management_group" "primary" {
  name = var.management_group
}

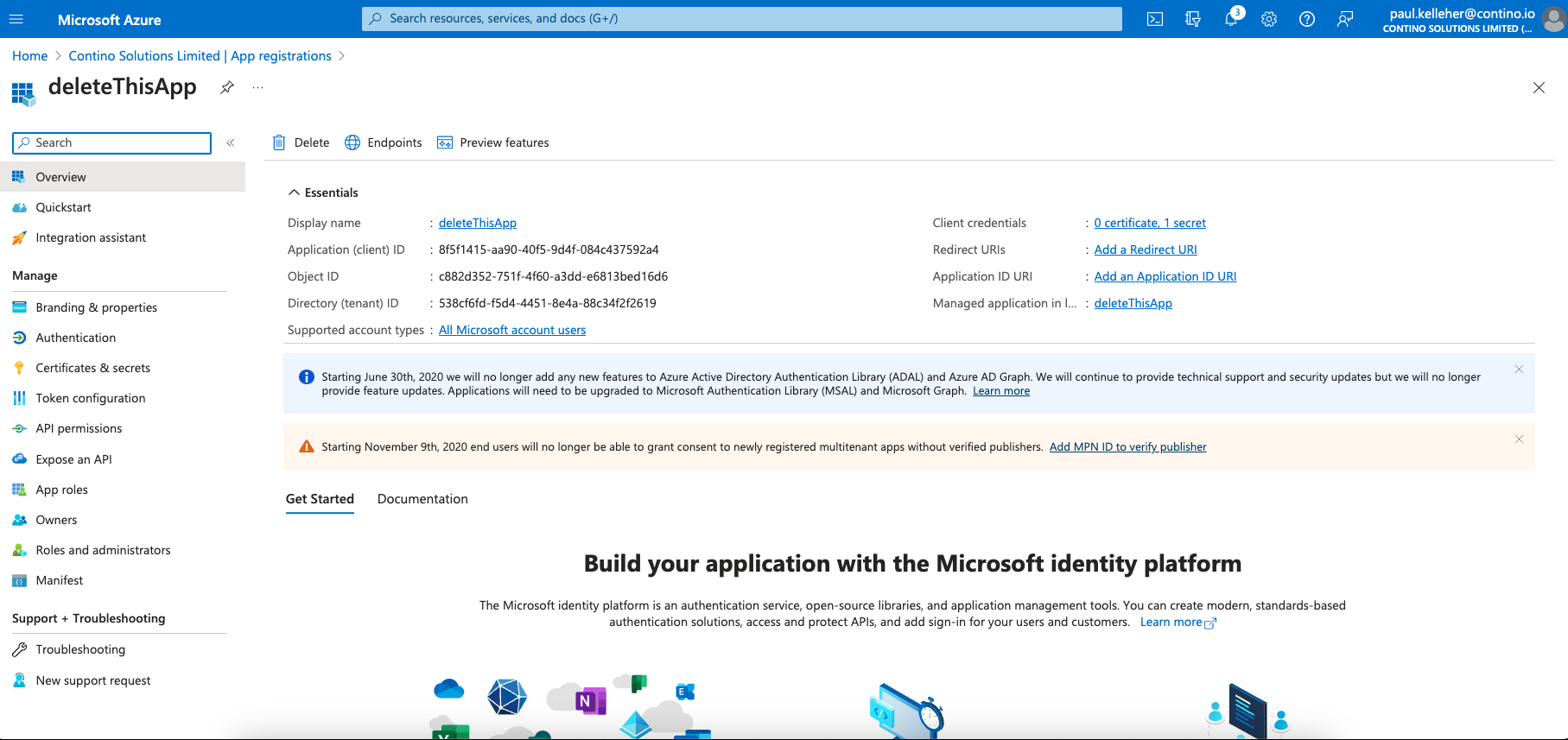

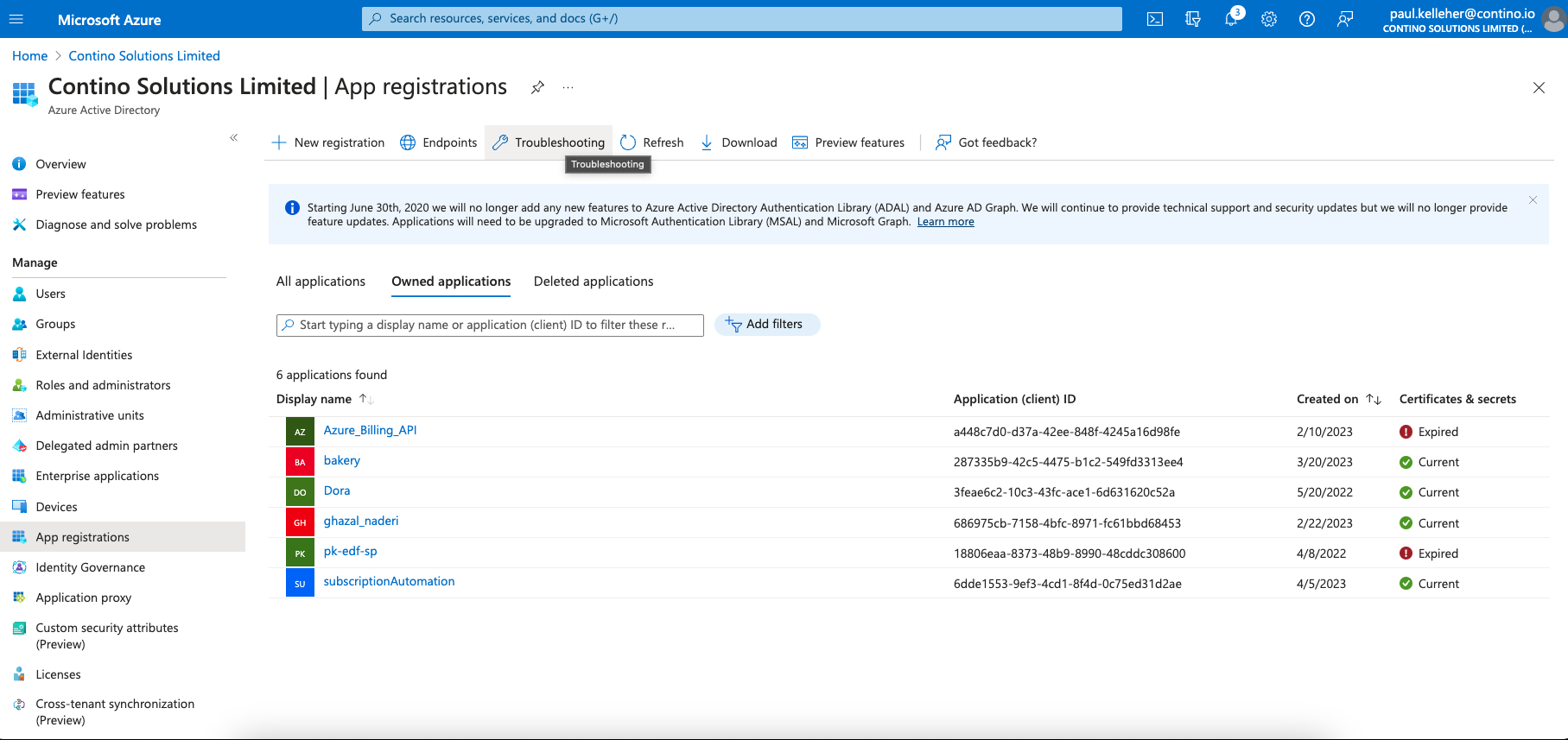

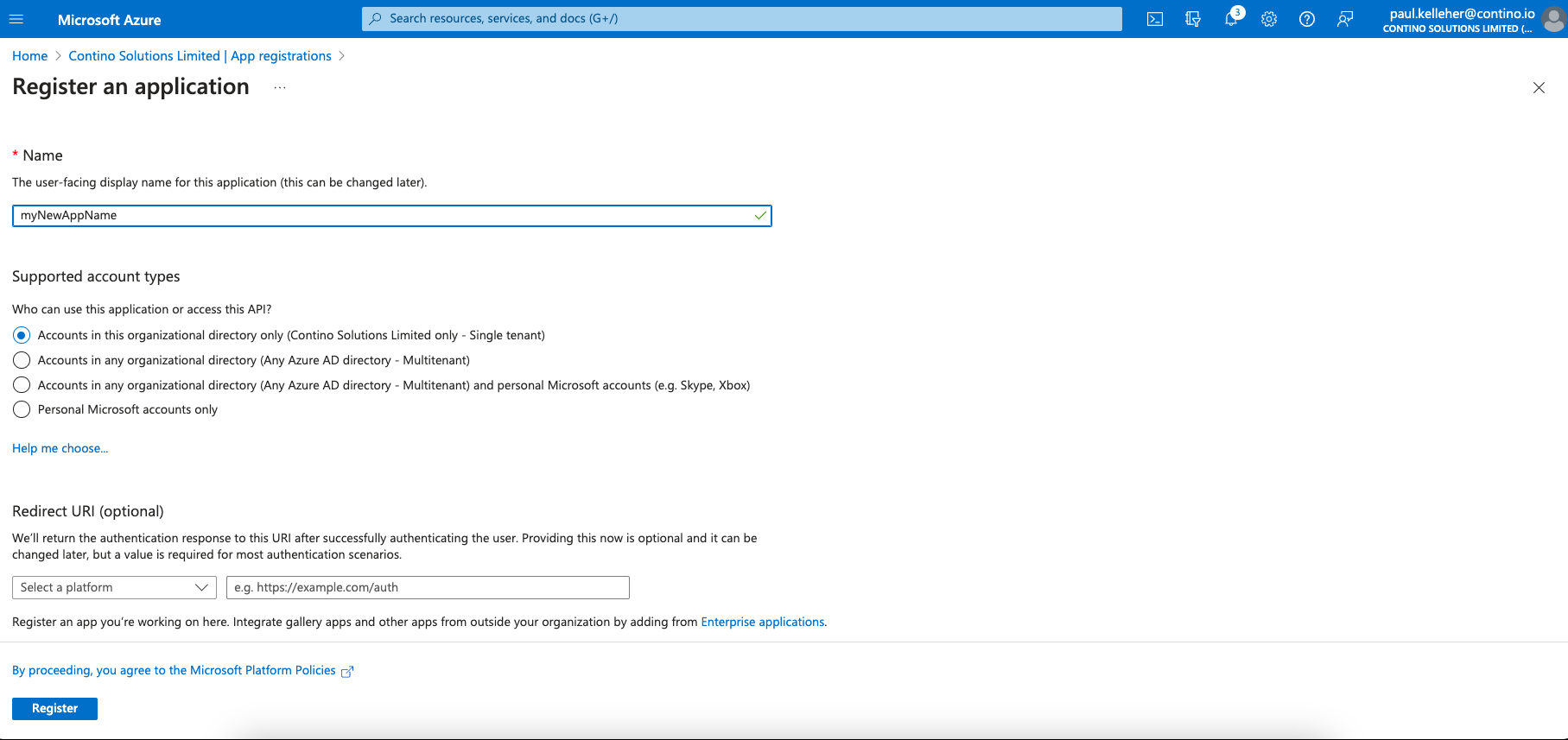

Create the App Registration or Service Principal

resource "azuread_application" "auth" {
 display_name = "${var.application_name}"
 }

Obtain the AppId so we can assign a role to the SP

resource "azuread_service_principal" "auth" {
 application_id = "${azuread_application.auth.application_id}"
}

Assign a role definition and scope to the Service Principal

resource "azurerm_role_assignment" "auth" {
 scope                = "${data.azurerm_management_group.primary.id}"
 role_definition_name = "Owner"
 principal_id         = "${azuread_service_principal.auth.id}"
}

so now - with some basic inputs for app name and management group we should be anle to validate the process with terraform plan

terraform init
terraform plan

Terraform init && terraform plan

[

](https://asciinema.org/a/VqDXOwnAMjdy6NRQWD0pnusMx)

Plan

  # azuread_application.auth will be created
  + resource "azuread_application" "auth" {
      + app_role_ids                = (known after apply)
      + application_id              = (known after apply)
      + disabled_by_microsoft       = (known after apply)
      + display_name                = "testapp"
      + id                          = (known after apply)
      + logo_url                    = (known after apply)
      + oauth2_permission_scope_ids = (known after apply)
      + object_id                   = (known after apply)
      + prevent_duplicate_names     = false
      + publisher_domain            = (known after apply)
      + sign_in_audience            = "AzureADMyOrg"
      + tags                        = (known after apply)
      + template_id                 = (known after apply)

      + feature_tags {
          + custom_single_sign_on = (known after apply)
          + enterprise            = (known after apply)
          + gallery               = (known after apply)
          + hide                  = (known after apply)
        }
    }

  # azuread_service_principal.auth will be created
  + resource "azuread_service_principal" "auth" {
      + account_enabled             = true
      + app_role_ids                = (known after apply)
      + app_roles                   = (known after apply)
      + application_id              = (known after apply)
      + application_tenant_id       = (known after apply)
      + display_name                = (known after apply)
      + homepage_url                = (known after apply)
      + id                          = (known after apply)
      + logout_url                  = (known after apply)
      + oauth2_permission_scope_ids = (known after apply)
      + oauth2_permission_scopes    = (known after apply)
      + object_id                   = (known after apply)
      + redirect_uris               = (known after apply)
      + saml_metadata_url           = (known after apply)
      + service_principal_names     = (known after apply)
      + sign_in_audience            = (known after apply)
      + tags                        = (known after apply)
      + type                        = (known after apply)

      + feature_tags {
          + custom_single_sign_on = (known after apply)
          + enterprise            = (known after apply)
          + gallery               = (known after apply)
          + hide                  = (known after apply)
        }

      + features {
          + custom_single_sign_on_app = (known after apply)
          + enterprise_application    = (known after apply)
          + gallery_application       = (known after apply)
          + visible_to_users          = (known after apply)
        }
    }

  # azurerm_role_assignment.auth will be created
  + resource "azurerm_role_assignment" "auth" {
      + id                               = (known after apply)
      + name                             = (known after apply)
      + principal_id                     = (known after apply)
      + principal_type                   = (known after apply)
      + role_definition_id               = (known after apply)
      + role_definition_name             = "Owner"
      + scope                            = "/providers/Microsoft.Management/managementGroups/UK"
      + skip_service_principal_aad_check = (known after apply)
    }

Plan: 3 to add, 0 to change, 0 to destroy.

Checkpoint

:subscription: :terraform:

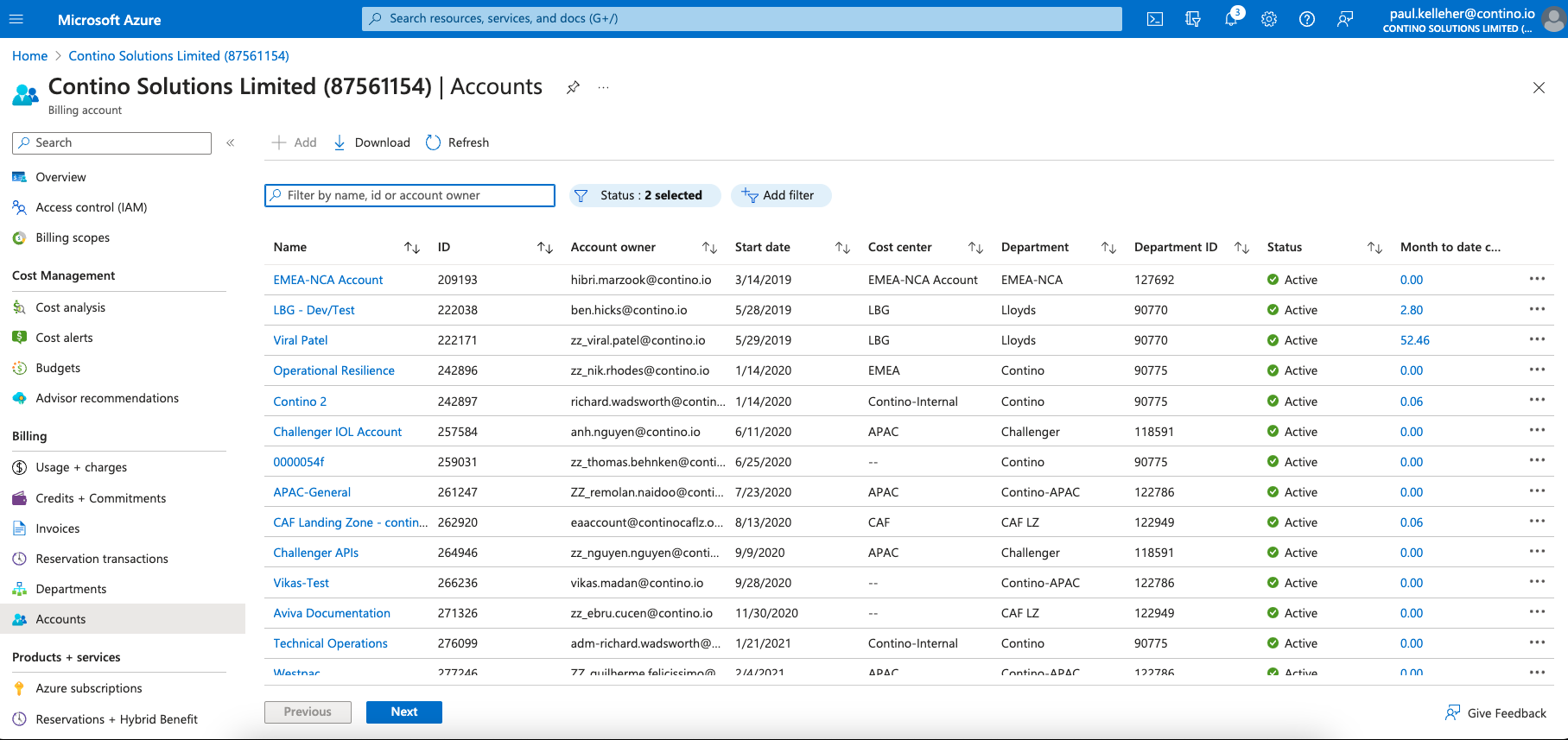

set variables for the subscription name and the billing details we discovered previously

variable "subscription_display_name" { default = "test"}
variable "billing_account_name" { default = "187561154"}
variable "enrollment_account_name" { default = "311200"}

lookup the scope associated with our billing details - so we can assign the subscription there

data "azurerm_billing_enrollment_account_scope" "current" {
  billing_account_name    = var.billing_account_name
  enrollment_account_name = var.enrollment_account_name
  }

create the subscription resource under the billing id

resource "azurerm_subscription" "create" {
  subscription_name = var.subscription_display_name
  billing_scope_id  =  data.azurerm_billing_enrollment_account_scope.current.id
}

if we add this as a new set of terraform files, we can use the SP details crested earlier to run the deployment

terraform init
terraform plan

terraform init && terraform plan

[

](https://asciinema.org/a/opGXbphLX0Q5UwjSxhCYUCmdX)

terraform plan

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # azurerm_subscription.create will be created
  + resource "azurerm_subscription" "create" {
      + alias             = (known after apply)
      + billing_scope_id  = "/providers/Microsoft.Billing/billingAccounts/187561154/enrollmentAccounts/311200"
      + id                = (known after apply)
      + subscription_id   = (known after apply)
      + subscription_name = "test"
      + tenant_id         = (known after apply)
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Next we’ll take the process and variables we discovered here and mimic the steps in terraform… first locally and then in a GitHub Workflow
